Possible Solutions

No Connection to Message Broker

Check if the BROKER_SERVERS key in Consul is specified correctly.

Analyzing NATS Streams

SEAL NATS comes with a CLI which can be used for analyzing NATS problems.

Literature - NATS CLI documentation

For a detailed description, see the NATS CLI documentation on GitHub.

Check the NATS Connection

Use the NATS CLI to check the connection to a NATS server.

  1. Open a command prompt.

  2. Switch to the NATS installation directory. The NATS CLI is not in the search path of the operating system.

    • Windows: cd "C:\Program Files\SEAL Systems\seal-nats"
    • Linux: cd /opt/seal/seal-nats

  3. Check the connection:

    • Windows: .\nats.exe server check connection [-s nats://<hostname>:4222]
    • Linux: ./nats server check connection [-s nats://<hostname>:4222]

Activate NATS Debug and Trace Logging

In most cases, the standard NATS log already contains enough information to diagnose a problem.

Caution - log file size

Only activate trace logging in an emergency. The log file grows very quickly to an enormous size.

  1. Open the NATS configuration file in an editor.

    • Windows: C:\ProgramData\SEAL Systems\config\nats.conf
    • Linux: /opt/seal/etc/nats.conf

  2. Add or activate the following lines:

    debug: true
trace: true

  3. Restart NATS.

    plossys service stop seal-nats
plossys service start seal-nats

Activate NATS Monitoring

To check the NATS status, you can enable the monitoring port in nats.conf.

  1. Open the NATS configuration file in an editor.

    • Windows: C:\ProgramData\SEAL Systems\config\nats.conf

    • Linux: /opt/seal/etc/nats.conf

  2. Activate the NATS monitoring port:

    # HTTP monitoring port
monitor_port: 8222

  3. Restart NATS.

    plossys service stop seal-nats
plossys service start seal-nats

  4. If extern access to NATS monitoring is needed, open firewall port 8222.

  5. Open NATS monitoring in a browser.

    http://localhost:8222

  6. Cluster connections can be seen under General.

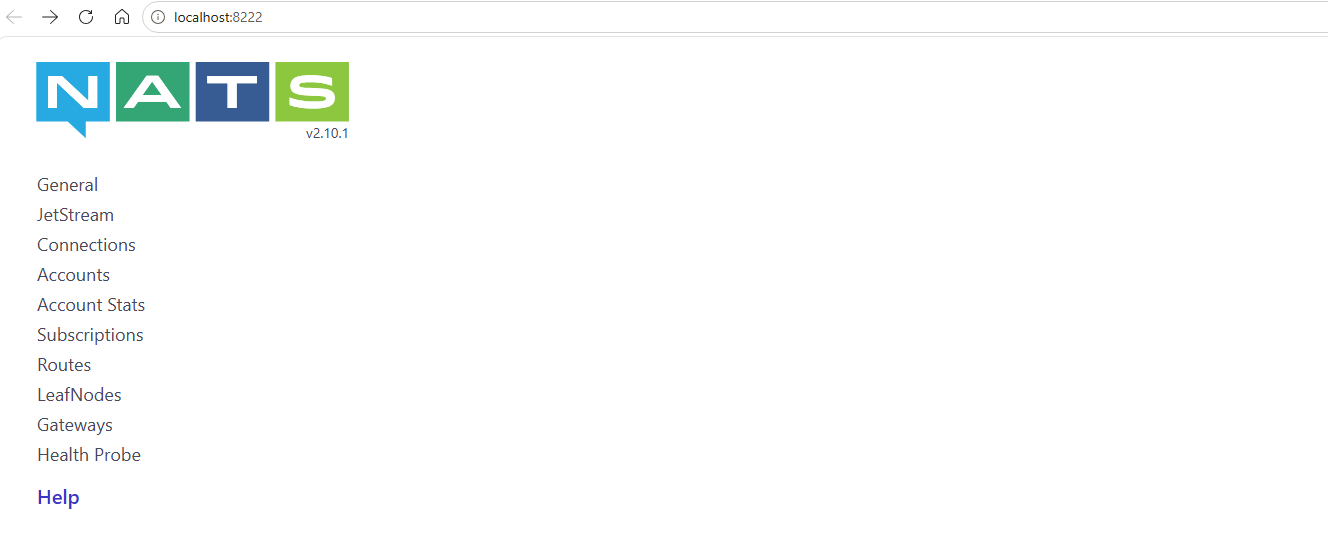

    Preview of NATS Monitoring in the browser

Clear Buckets

In PLOSSYS Output Engine 7.0.0, a misconfiguration of the OMS Submit configuration caused no SAP notifications to be sent. After fixing the configuration, the NATS buckets must be cleared.

  1. Stop seal-co-notifier service.

  2. Switch to the NATS directory.

    • Windows: cd "C:\Program Files\SEAL Systems\seal-nats"
    • Linux: cd /opt/seal/seal-nats

  3. Clear the buckets in the NATS key-value store used by seal-co-notifier service.

    • Windows:

      ./nats.exe kv del co-notifier-job-counters
./nats.exe kv del co-notifier-job-data
./nats.exe kv del co-notifier-device-counters
./nats.exe kv del co-notifier-printer-sap
./nats.exe kv del co-notifier-printer-mappings
./nats.exe kv del co-notifier-reply-groups

    • Linux:

      ./nats kv del co-notifier-job-counters
./nats kv del co-notifier-job-data
./nats kv del co-notifier-device-counters
./nats kv del co-notifier-printer-sap
./nats kv del co-notifier-printer-mappings
./nats kv del co-notifier-reply-groups

Literature - buckets in the NATS key-value store

For more information about the buckets in the NATS key-value store used by seal-co-notifier service, refer to SAP notifications.
